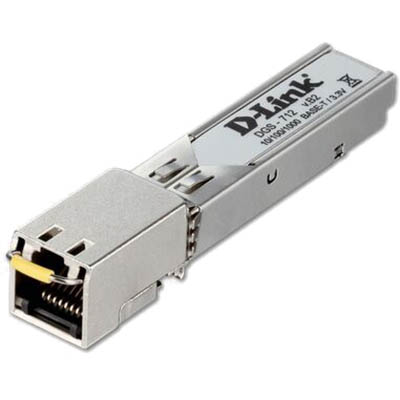

D-LINK DGS-712 GIGABIT SFP TO RJ45 TRANSCEIVER

Code: 7111739 Brand: D-LINK Colour: BLACK Size: Not Applicable

Stock level:	On Order

D-Link's DGS-712 1000BASE-T Copper Small Form Pluggable (SFP) transceiver is based on the SFP Multi Source Agreement | Compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3z and 802.3ab | The D-Link DGS-712 plugs into any standard SFP interface allowing for 1000Base-T Gigabit transmission over standard Category 5 twisted pair copper | Up to 1.25Gb/s bi-directional data links | Hot-pluggable SFP footprint | Extended case temperature range | Fully metallic enclosure for low EMI | Low power dissipation (typical 1.2 watts) | RJ-45 connector assembly | Access to physical layer IC via 2-wire serial bus | 10/100/1000 BASE-T operation in host systems with SGMII interface | Gigabit Ethernet over Cat. 5 cable | +3.3V electrical power interface

$188.18

EACH

Add

Please note: Prices are shown excluding GST (where applicable) and are in AUD$

Features

Standard: IEEE 802.3ab 1000BASE-T Gigabit Ethernet | Transceiver Type: SFP (Small Form Pluggable) | Connector: RJ-45 | Auto MDI/MDIX: Automatic crossover detection enabled, External crossover cable not required | Data Rate: 1,000 Mbps (IEEE 802.3 compatible), 10/100/1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only | Cable Type: Cat. 5 twisted-pair cable | Maximum Cable Distance Coverage: 100 meters | Supply Current: 350mA (typical), 400mA (maximum), 1.3W max power over full range of voltage and temperature | Input Voltage: 3.1V (minimum), 3.3V (typical), 3.5V (maximum) | Maximum Voltage: 4V | Surge Current: 30mA | Operating Temperature: 0 to 85 C | Storage Temp: -40 to 85 C | Warranty: Limited Lifetime | OEM: DGS-712
